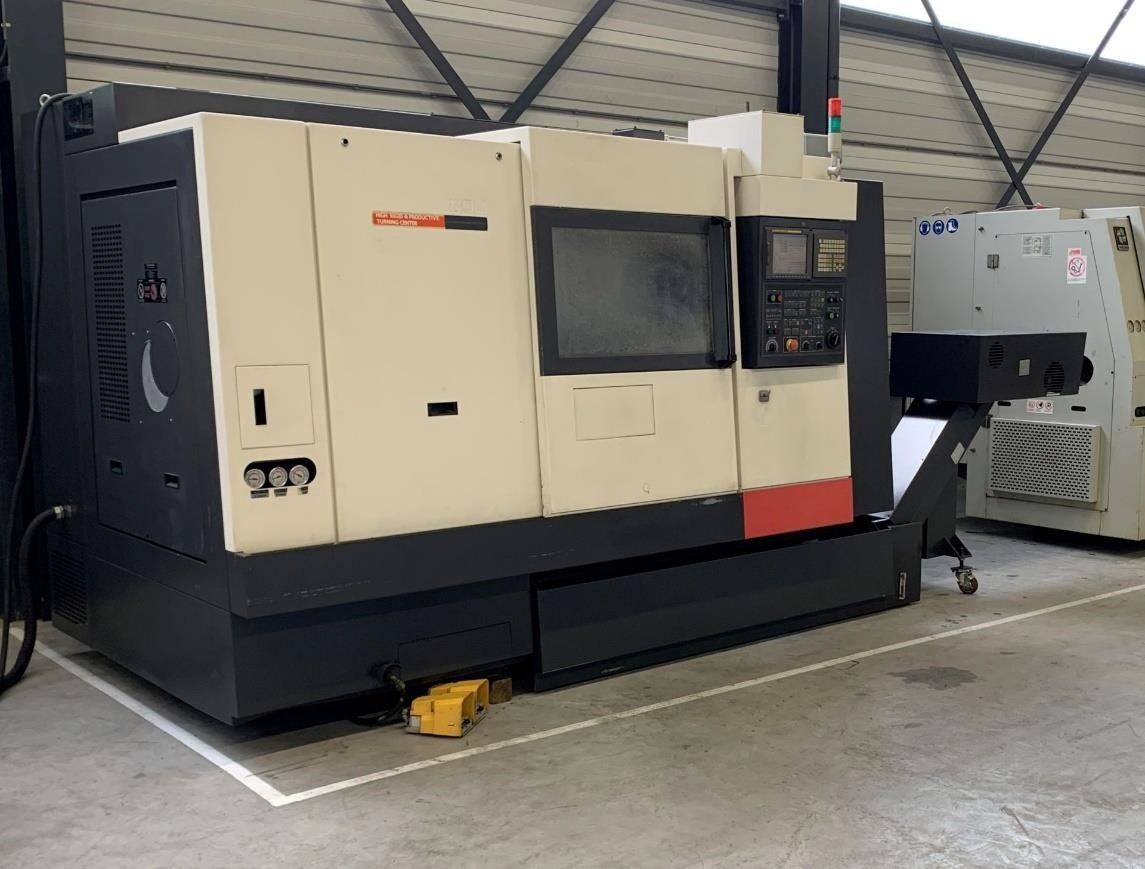

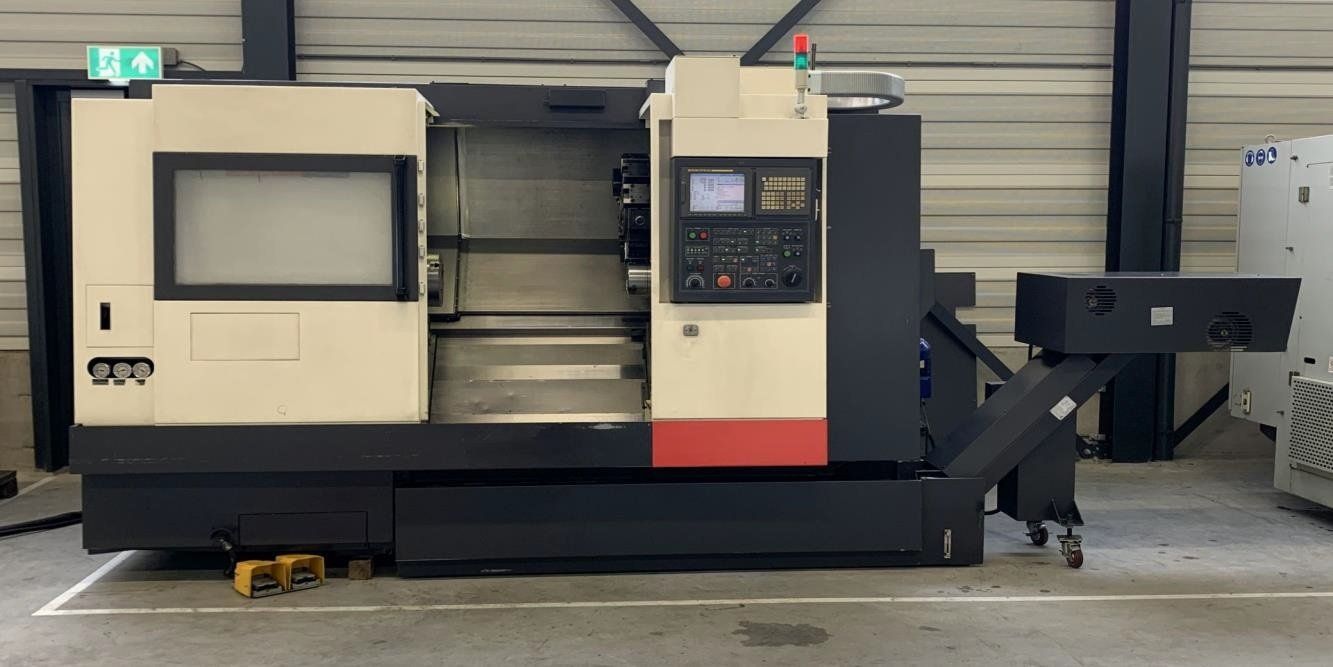

Hwacheon Hi Tech 300 SMC

General:

CNC Fanuc 18 i TB

Main spindle chuck 254 (10") mm

Secondary spindle plate 152 (6") mm

Maximum turn 600 mm

Standard machining diameter 266 mm

Maximum cutting diameter ø 380 x 255 (L) mm

Maximum cutting length ø 340 x 800 (L) mm

Main spindle bar pitch 71 mm

Secondary spindle bar pitch 46 mm

main spindle

Maximum rotation speed 3200 min-1

Minimum rotation speed 0 min-1

A2-8 spindle nose

Acceleration/deceleration time sec.

Spindle through hole diameter 90mm

Motor power (25% nominal ED) 22/18.5 kW

Maximum torque 1029.4 Nm

C axis positioning contour 0.001°

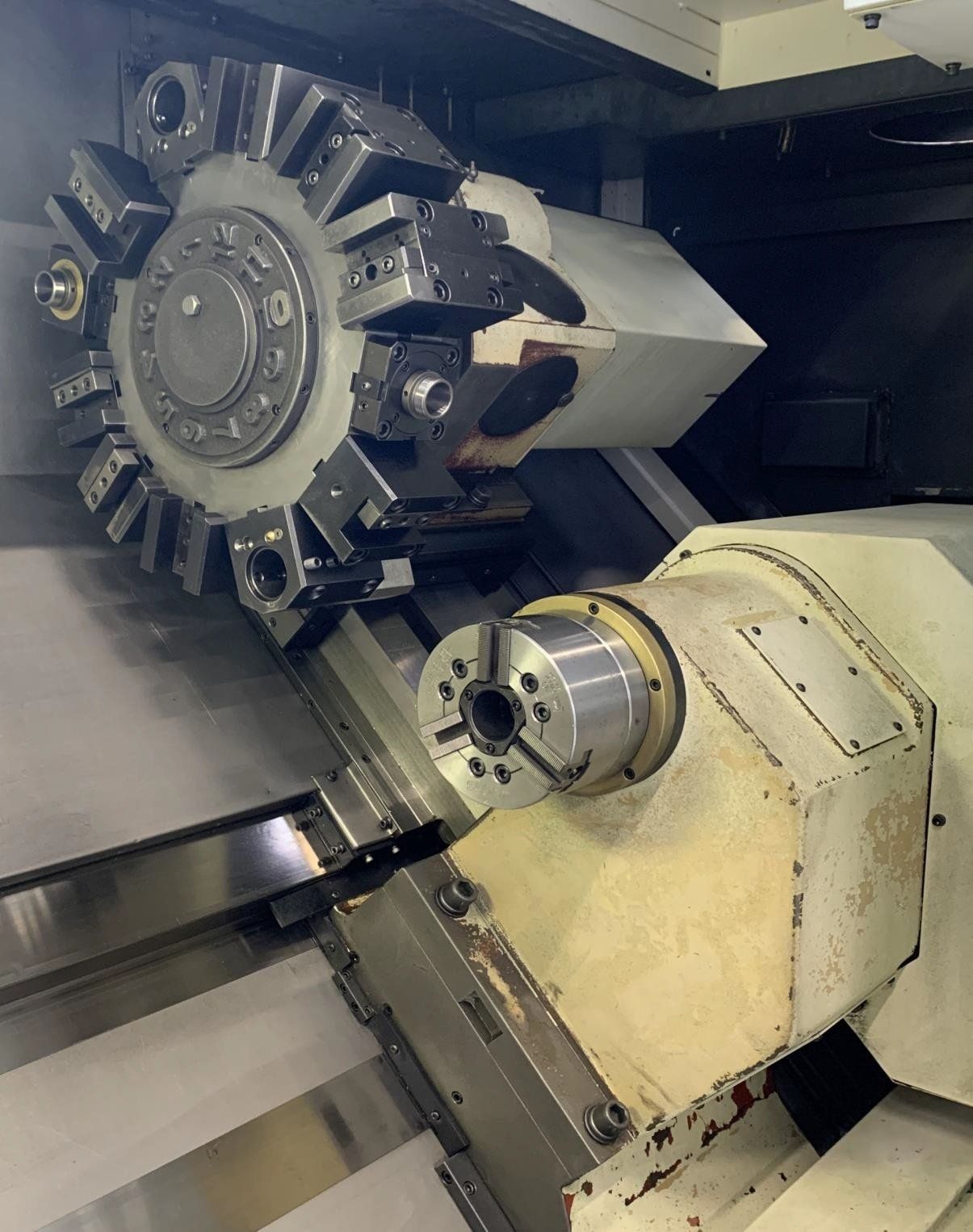

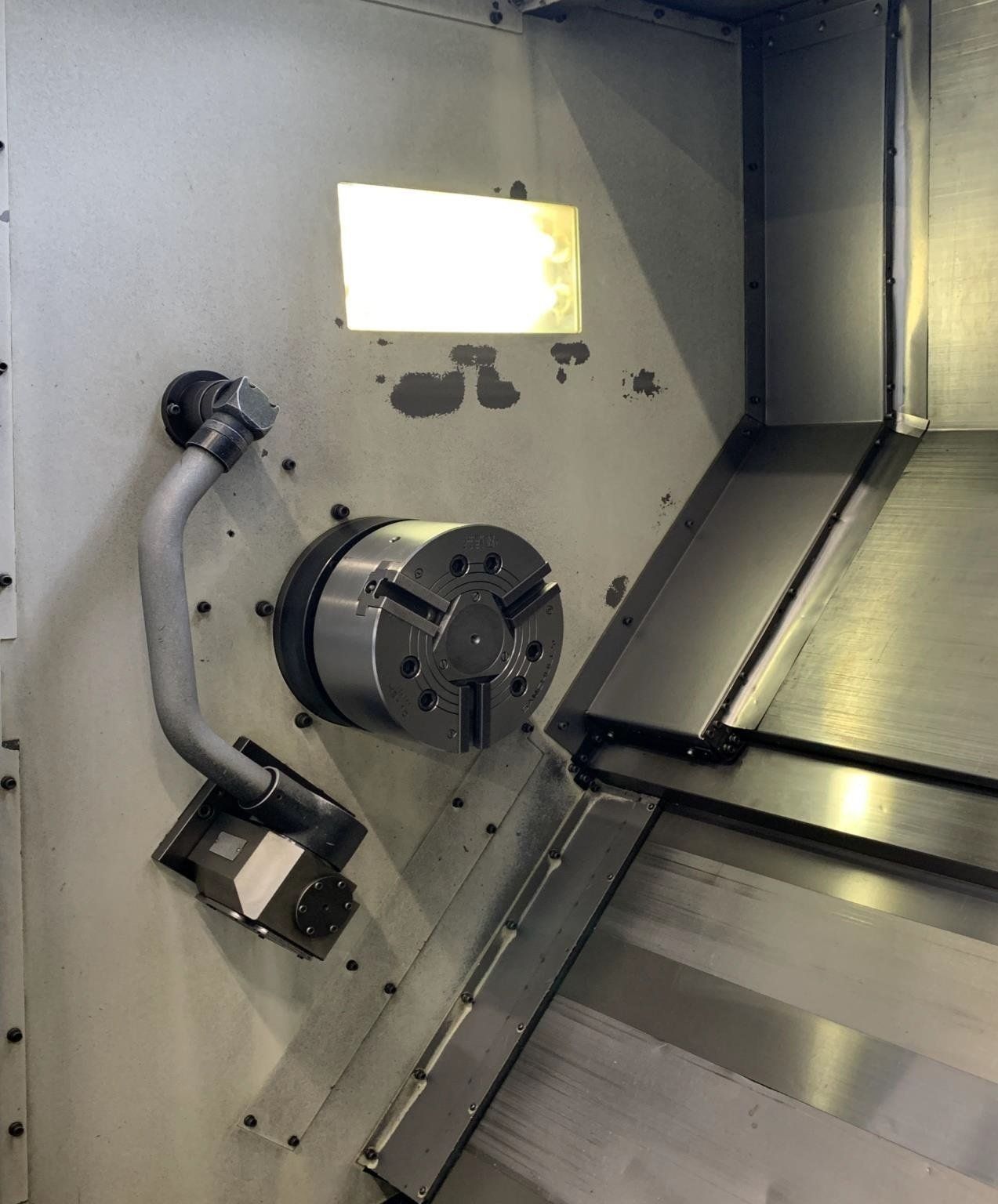

Secondary spindle

Maximum rotation speed 4000 min-1

Minimum rotation speed 0 min-1

A2-6 spindle nose

Acceleration/deceleration time sec.

Motor power (25% nominal ED) 7.5/5.5 kW

Maximum torque 95.6 Nm

C-axis positioning without contouring 0.001°

Options included

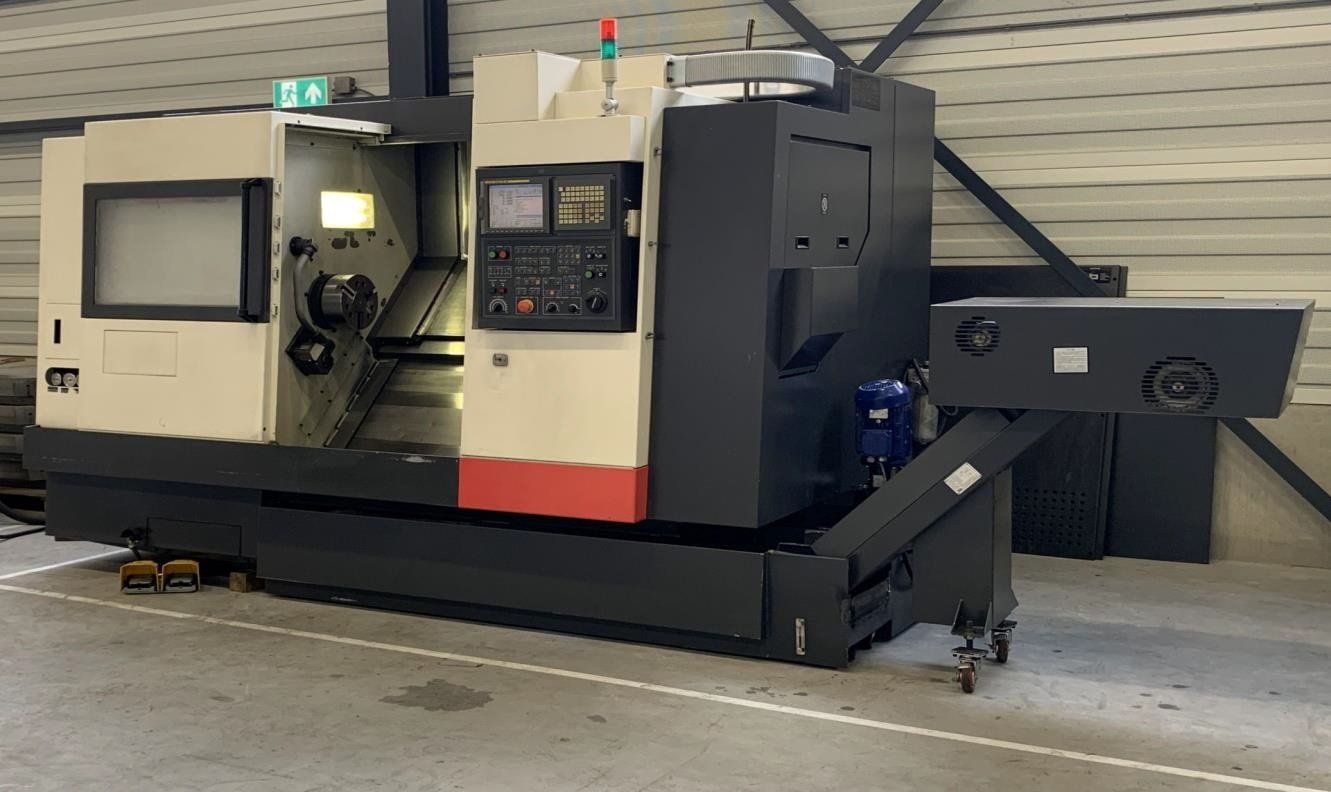

Chip conveyor

gauge presseter tools

high pressure pump
