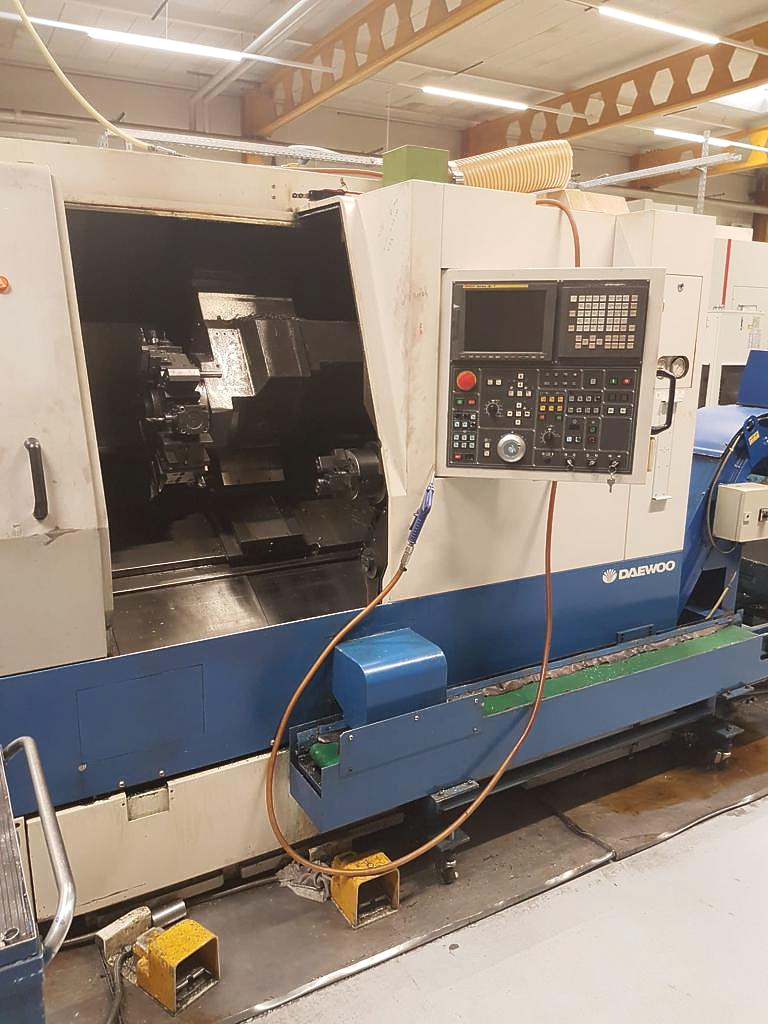

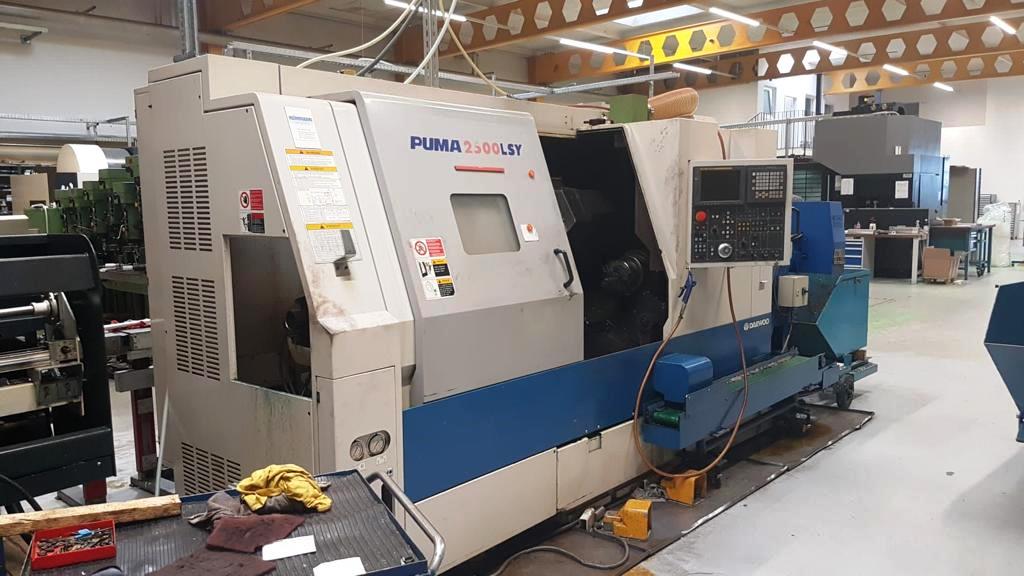

Doosan Puma-2500 SLY

CNC FANUC 18I T

Year of Manufacture 2002

Dimensions

Max diameter on bench 650 mm.

Max diameter on Carriage 550 mm.

Maximum machinable diameter 330 mm.

Maximum machinable length 750 mm.

Tours

X-axis travel 250 mm.

Z-axis travel 830 mm.

Y-axis travel 100 (±50) mm.

B-axis travel 750 mm.

Rapid Feed X / Y 20/24 m/min.

Rapid Forward and 7.5 m/min

Rapid Feed B 30 m/min.

Head

Head pitch 75 mm

Subhead pitch 45 mm

RPM Head 3,500 rpm.

Subspindle RPM 6,000 rpm

Main Head Power 22 Kw

Subhead Power 7.5 Kw

Turret

Power Tool Motorized 3.7 Kw.

Number of Turret Positions: 12 Positions

Tool Dimensions 25 mm

Turret Indexing Time 0.1 Sec.

RPM Power Tool 5,000 rpm.

Accessories

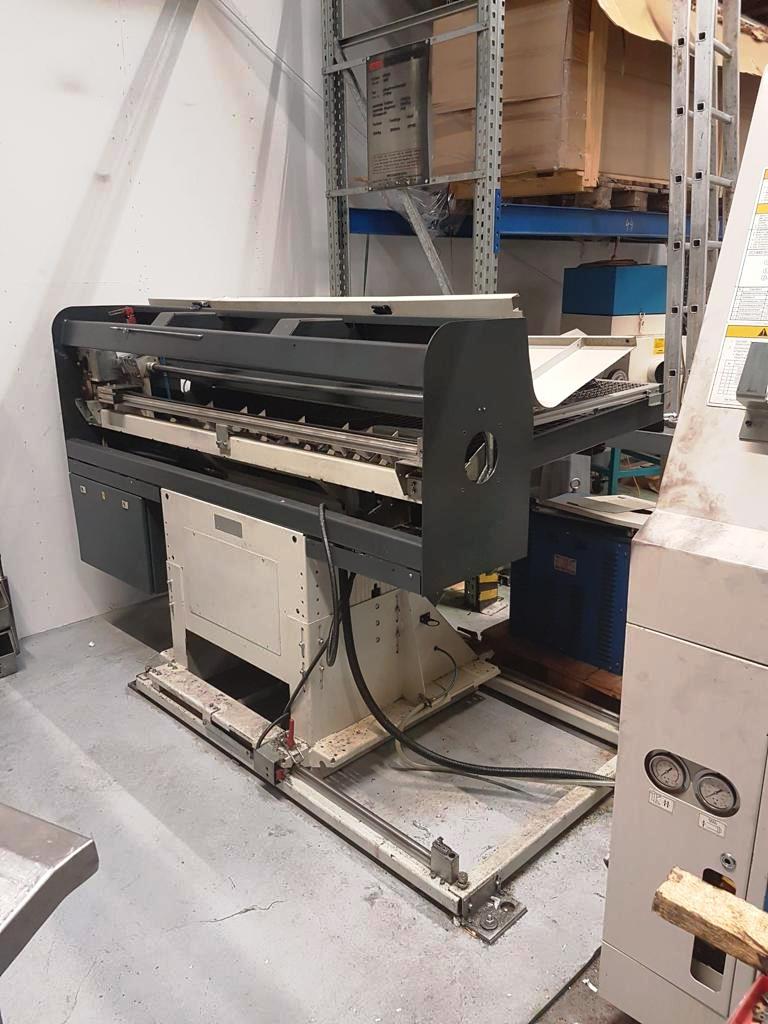

LNS Bar Loader

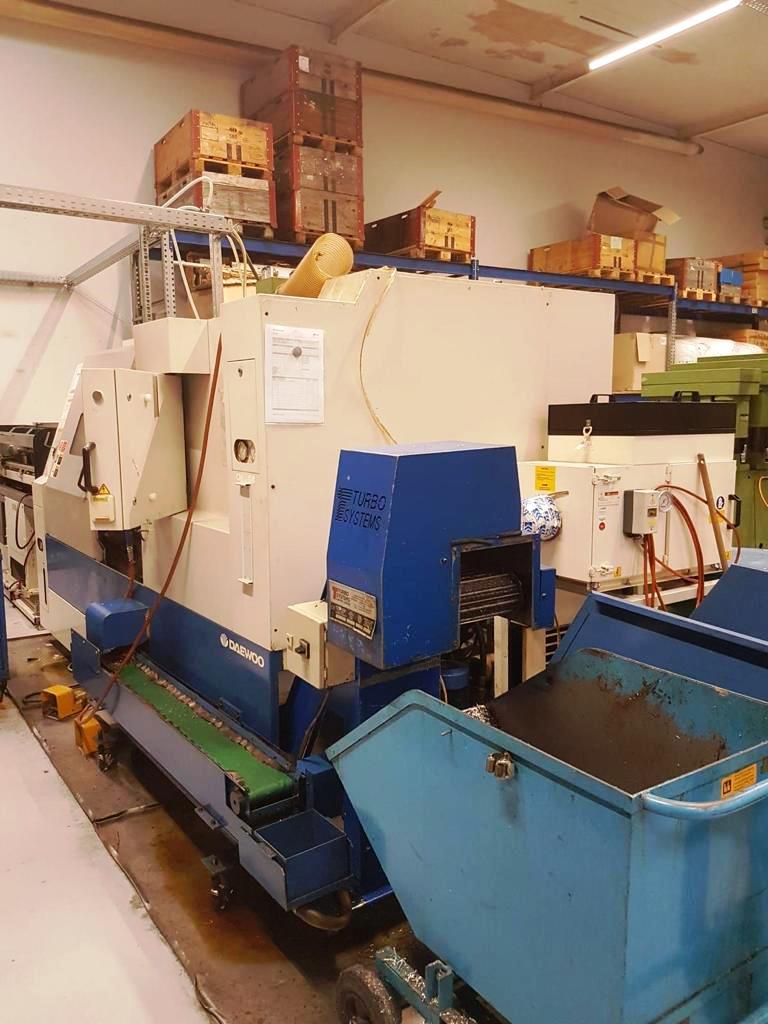

parts picker with conveyor belt
