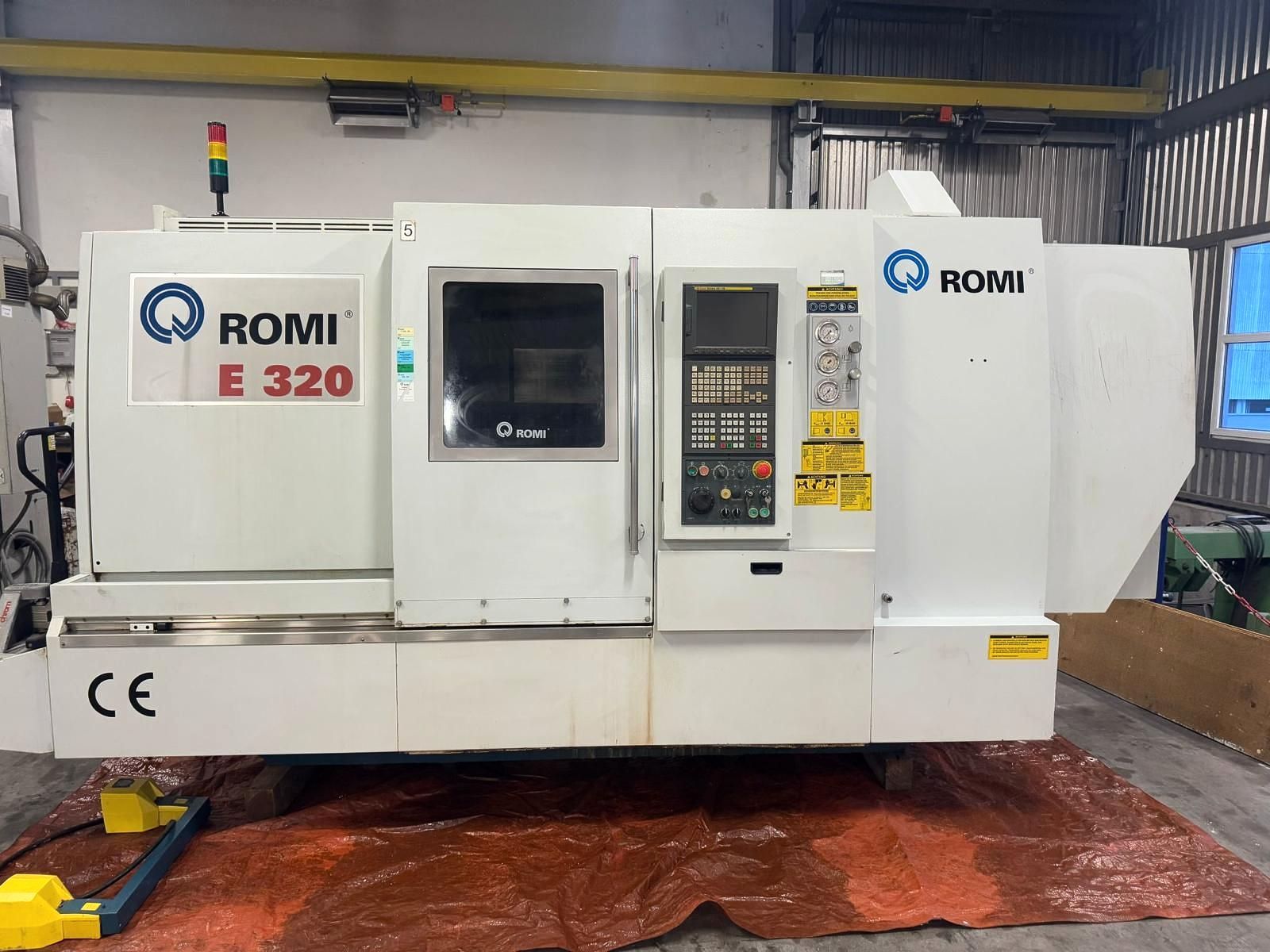

Rom E320
Manufacturer Romi Model E320 Year of manufacture 2008 Travels X axis = 220 Y axis = 60 -40 Parting length 1000 C axis 0.001º Main spindle Plate diameter 10 "254 mm Bar passage 76 Spindle nose ASA 2-6 Max. revolutions rpm 4000 Power kW 26 Control Fanuc 18i-TB Measuring probe presetting Equipment / accessories Chip conveyor piece collector conveyor belt

Doosan Puma 300 M
Manufacturer Doosan Daewoo Model Puma 300 M Year of manufacture 2004 Travels Swing over bed 600 Swing over carriage 550 Broaching length 680 Main spindle Chuck diameter 254 Bar passage 75 Max. revolutions rpm 3500 Power kW 18.5 Motorized turret Number of uni tools 12 Power kW 11 2,000 rpm Control Fanuc 21 iTB Measuring probe presetting batch live tools

Hwacheon Hi Tech 300 SMC
Manufacturer Hwacheon Model 300 SMC Year of manufacture 2008 Travels swing over bed 550 Swing over carriage 380 Broaching length 800 Main spindle C axis Chuck diameter 254 Bar passage 71 Max. revolutions rpm 3200 Power kW 30 Subspindle Chuck 152 mm revolutions 4000 Bar passage 46 C axis Motorized turret Number of uni tools 12 Power kW 11 2,000 rpm Control Fanuc 18 iTB Measuring probe presetting live tools

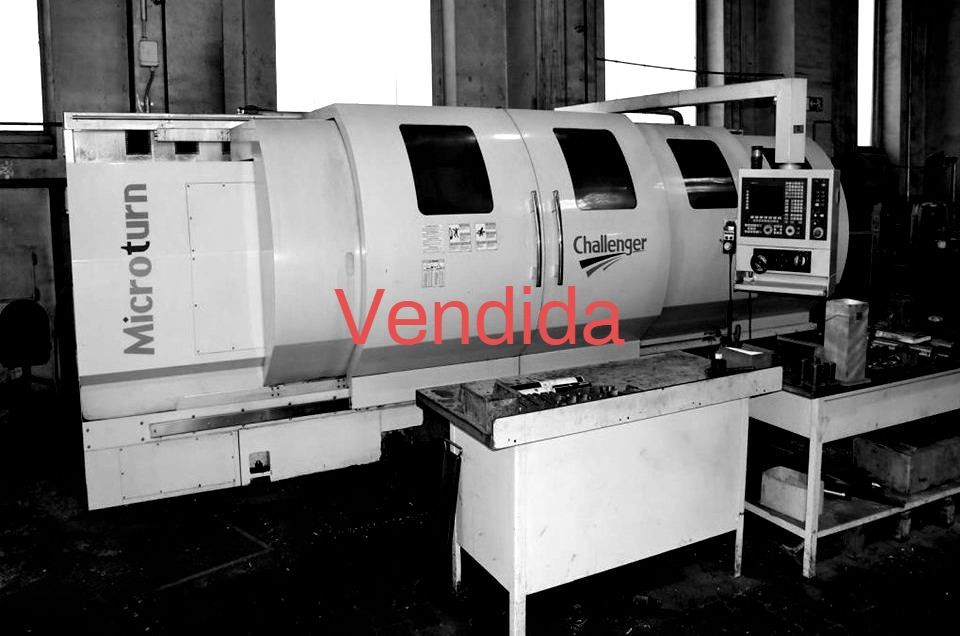

Microturn Challenger
Manufacturer Microcut Model Microturn Challenger Year of manufacture 2015 Travels swing over bed 760 Swing over carriage 650 Cutting length 3000 Main spindle Turret 8 positions Plate diameter 650 Bar pitch 104 Max. revolutions rpm 1600 Power kW 34.5 Control Fagor 8055 iFL Chip conveyor 2 Steady rests

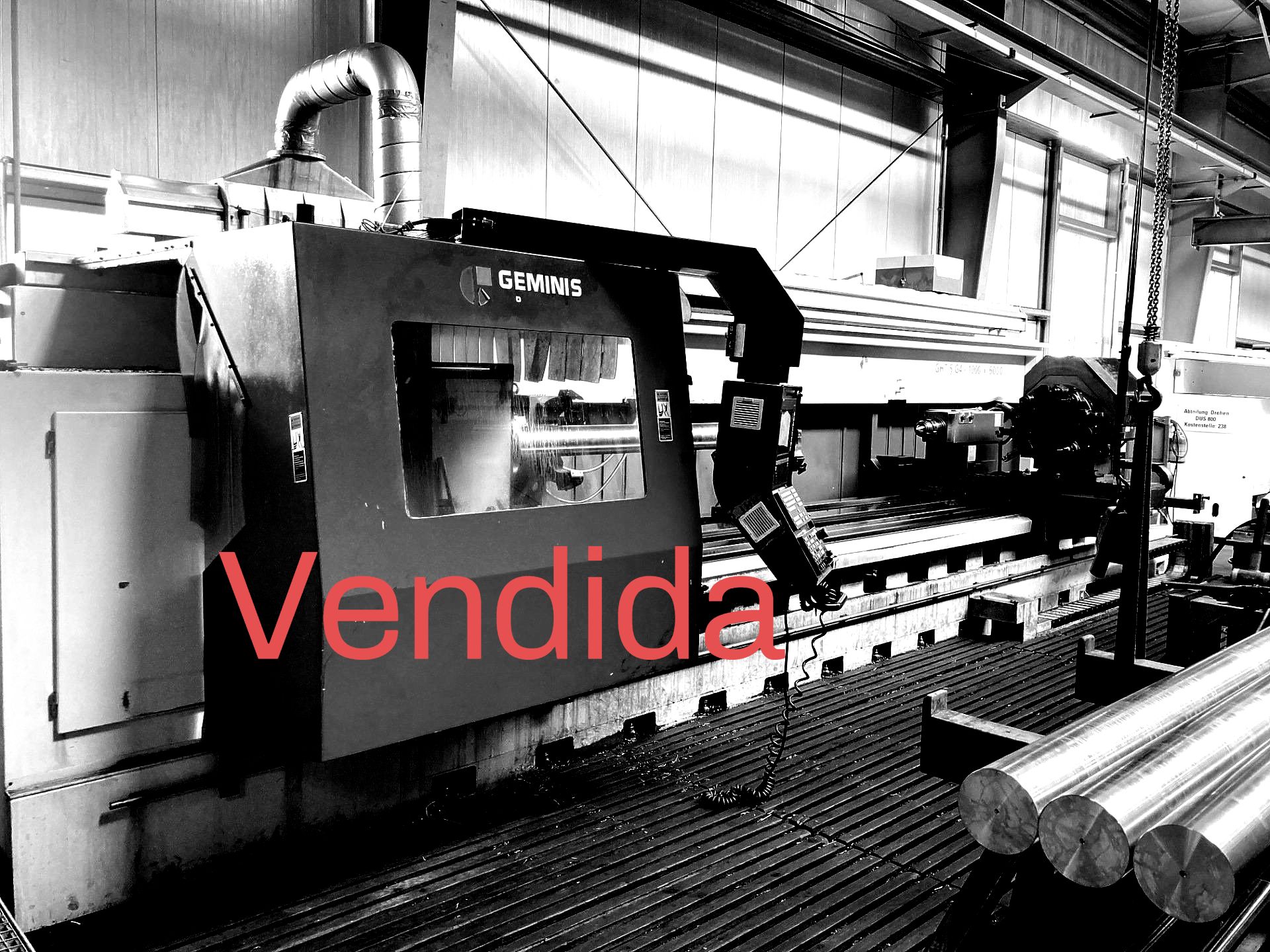

Gemini GHT 5 1000 X 6000
Manufacturer Geminis Model GHT 5 1000 G4 Year of manufacture 2008 Travels swing over bed 1000 Swing over carriage 700 Turning length 6000 Main spindle C axis Motorized turret 10 positions Plate diameter 380 Bar passage 104 Max. revolutions rpm 1600 double gamma Power kW 34.5 Control Siemens 810 Shop turn power line Chip conveyor Additional plate Steady rest

Doosan Puma 400 M
Manufacturer Doosan Daewoo Model Puma 400 M Year of manufacture 2008 Travels Swing over bed 770 Swing over carriage 550 Broaching length 1105 Main spindle Chuck diameter 380 Bar passage 116 Max. revolutions rpm 2000 Power kW 30 Motorized turret Number of uni tools 12 Power kW 11 2,000 rpm Control Fanuc 21 iTB Measuring probe presetting batch live tools

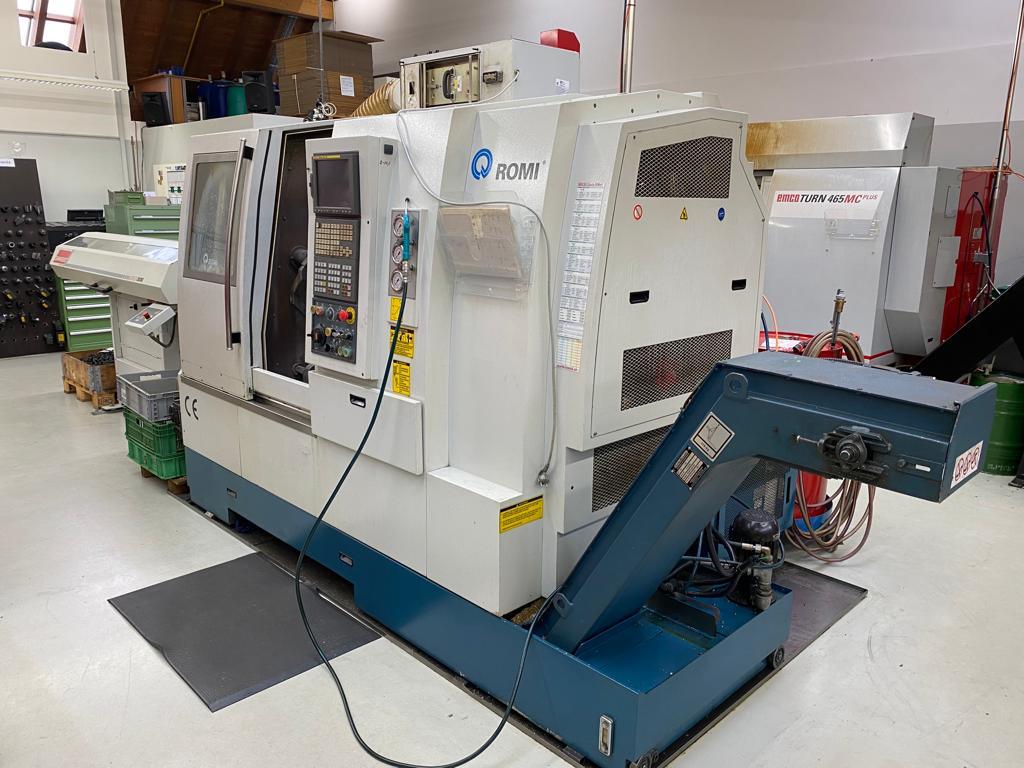

Roma E280
Manufacturer Romi Model E280 Year of manufacture 2006 Travels swing over bed 560 Swing over carriage 390 Broaching length 440 C axis 0.001º Main spindle Plate diameter 10" 254 mm Bar passage 64 Spindle nose ASA 2-6 Max. revolutions rpm 4000 Power kW 15 20 Hp Control Fanuc 21i Measuring probe presetting Equipment / accessories Chip conveyor piece collector conveyor belt bar advancer

Spinner TC 110 L- M
Manufacturer SPINNER Model TC 110 L-MC Year of manufacture 20 Travels swing over bed 800 Swing over carriage 500 Turning length 1500 Y AXIS no Main spindle Chuck diameter 400 Bar passage 110 Max. revolutions rpm 3200 Power kW 43 Motorized turret Number of uni tools 12 Power kW 16.5 4,000 rpm Y Axis no Control SIEMENS 840D Measuring probe presetting Equipment / accessories Chip conveyor Programmable hydraulic steady rest

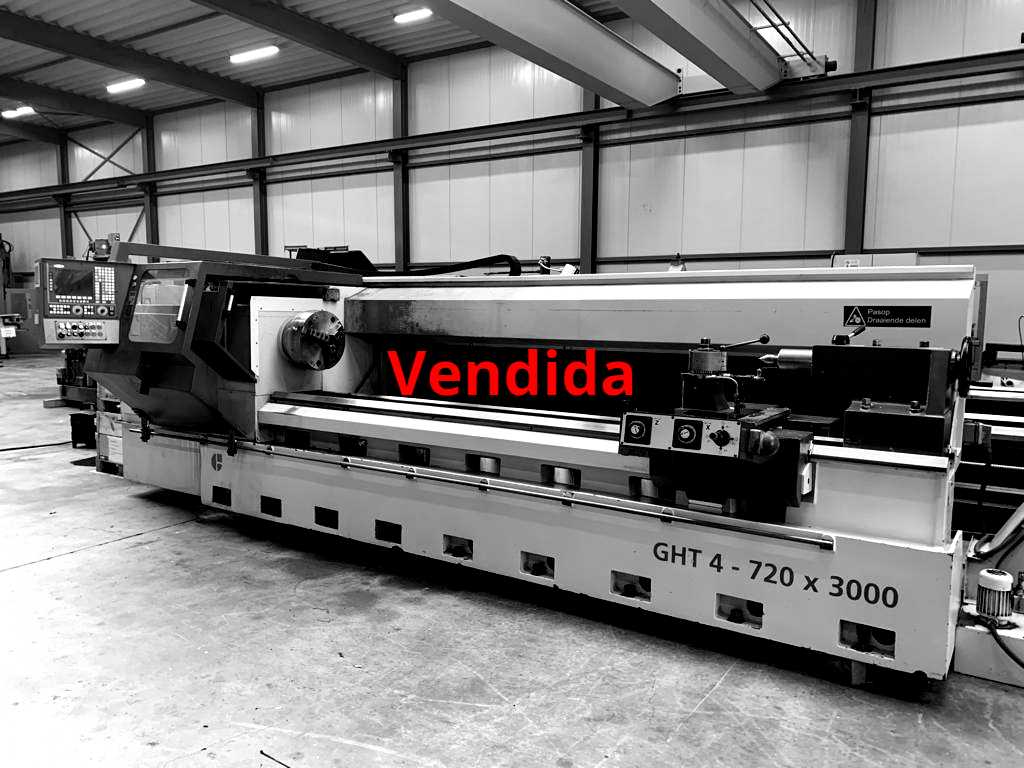

Gemini GHT 4 720 X 3000
Manufacturer Geminis Model Puma GHT 4 Year of manufacture 2001 Travels swing over bed 720 Swing over carriage 470 Cutting length 3000 Main spindle Plate diameter 380 Bar pitch 104 Max. revolutions rpm 2000 Power kW 26 Control Fagor 8055 Chip conveyor Additional plate

Doosan Puma 2500 SLY
CNC FANUC 18I T Year of Manufacture 2002 Dimensions Max. diameter over Bed 650 mm. Max. diameter over Carriage 550 mm. Max. machinable diameter 330 mm. Max. machinable length 750 mm. Travels X-Axis Travel 250 mm. Z-Axis Travel 830 mm. Y-Axis Travel 100 (±50) mm. B-Axis Travel 750 mm. Rapid Feed X / Y 20/24 m/min. Rapid Feed Y 7.5 m/min Rapid Feed B 30 m/min. Headstock Head Pitch 75 mm Sub-Spindle Pitch 45 mm Head RPM 3,500 rpm. Sub-Spindle RPM 6,000 rpm Main Spindle Power 22 Kw Sub-Spindle Power 7.5 Kw Turret Motorized Tool Power 3.7 Kw. Number of Turret Positions 12 Positions Tool Dimensions 25 mm Turret Indexing Time 0.1 Sec. Live Tool RPM 5,000 rpm. Accessories LNS Bar Loader, parts catcher with conveyor belt

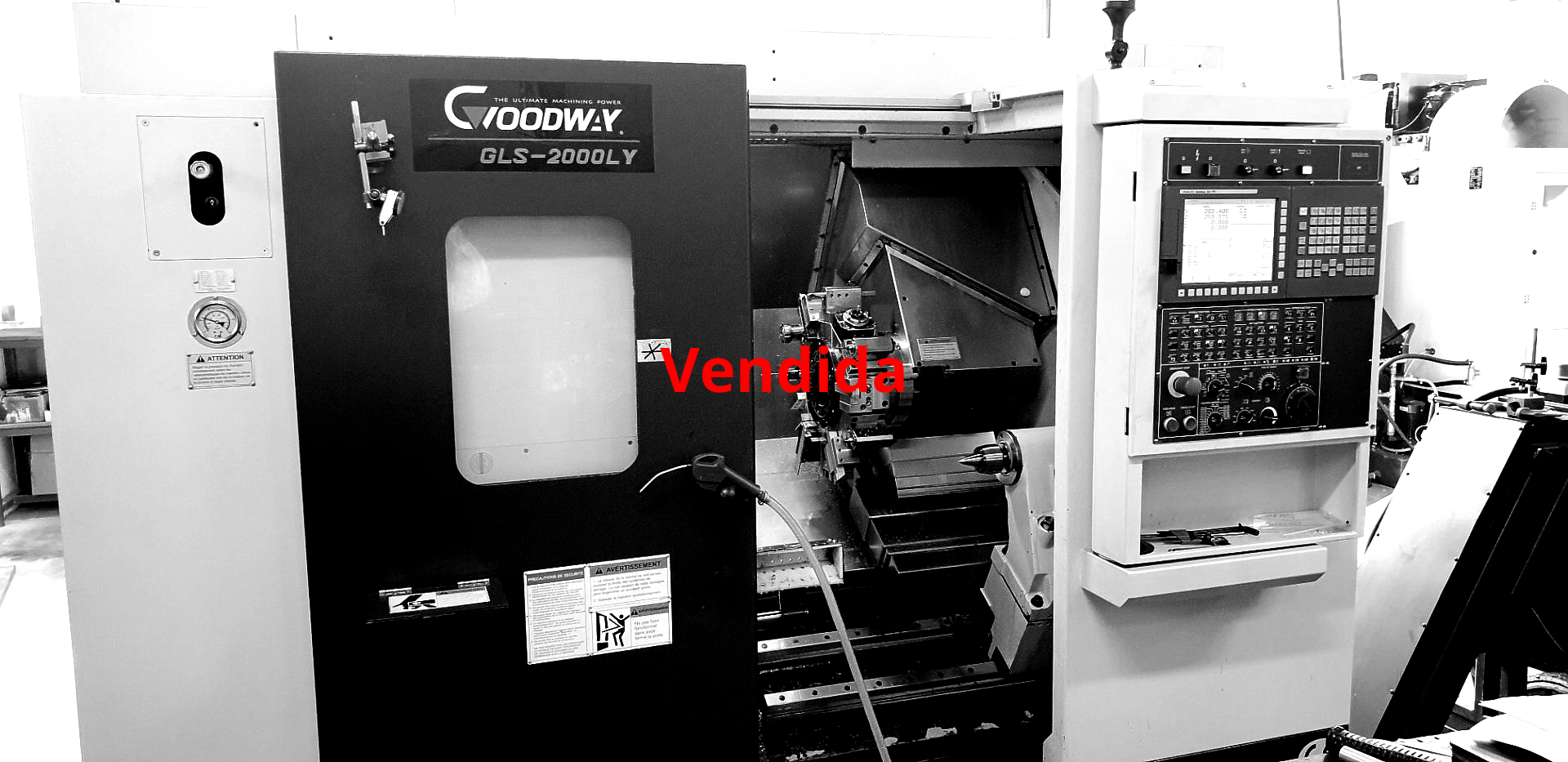

Goodway GLS-200 LY
Manufacturer Goodway Model GLS 200 LY Year of manufacture 2017 Travels swing over bed 560 Swing over carriage 390 Broaching length 630 Y axis 70 C axis 0.001º Main spindle Plate diameter 10" 254 mm Bar pitch 65 Spindle nose ASA 2-6 Max. revolutions rpm 4500 Power kW 15 20 Hp Control Fanuc OI-TF Measuring probe presetting Equipment / accessories Chip conveyor

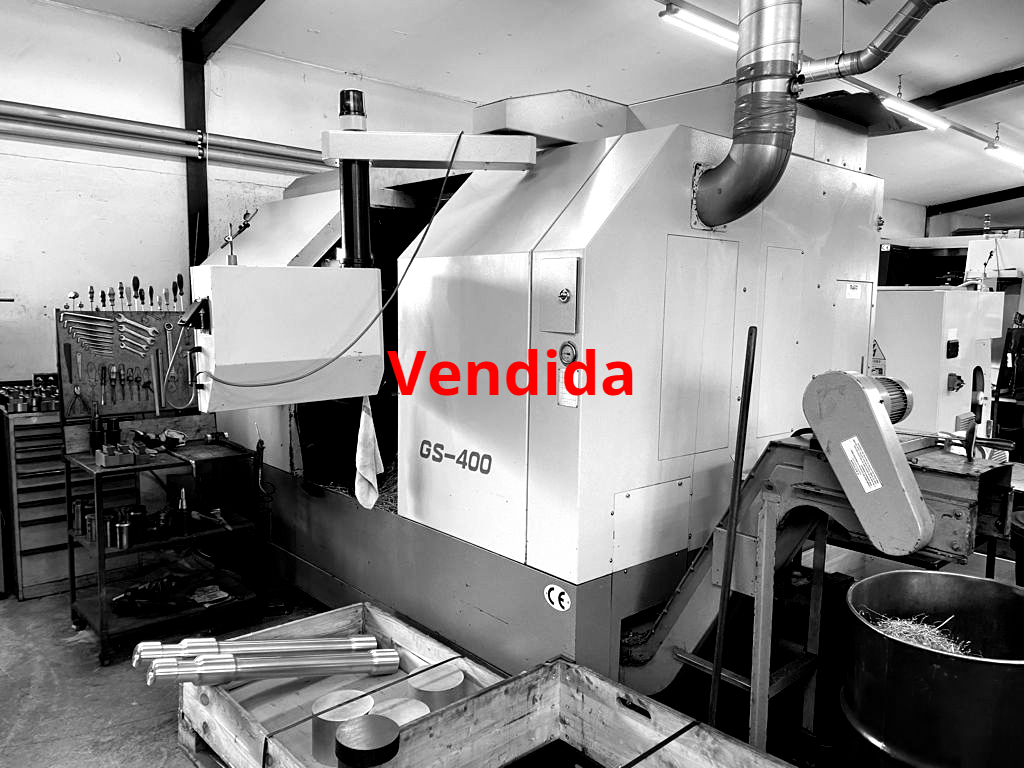

Goodway GS-400
Manufacturer Goodway Model GS 400 Year of manufacture 2001 Travels swing over bed 910 Swing over carriage 610 Broaching length 910 Main spindle Chuck diameter 380 Bar passage 115 Spindle nose ASA 2-11 Max. revolutions rpm 2400 Power kW 37 Control Fanuc 18-T Measuring probe presetting Equipment / accessories Chip conveyor

Spinner TC 600 MCY
Manufacturer SPINNER Model TC 600 MCY Year of manufacture 2014 Travels Swing over bed 600 Swing over carriage 400 Broaching length 650 Y AXIS 90 MM Main spindle Chuck diameter 250 Bar passage 66 Max. revolutions rpm 4000 Power kW 34 Motorized turret Number of uni tools 16 Power kW 16.5 6,000 rpm Y axis SI 50 -40=90 Control SIEMENS 840D Measuring probe presetting Equipment / accessories Chip conveyor

FEELER FT 500 XL
Manufacturer FEELER Model FT 500 XL Year of manufacture 2009 Travels swing over bed 950 Swing over carriage 850 Broaching length 3100 Main spindle Chuck diameter 380 C AXIS Bar passage 115 Max. revolutions rpm 1500 Power kW 37 spindle Motorized turret Number of tools uni 12 VDI 60 Power kW 11 Control Fanuc 0iTB Measuring probe presetting Equipment / accessories Chip conveyor Electronic handwheel Driven tool holder 1 HYDRAULIC REST SMW BBM245 / 30 2 motorized Axial holders 2 motorized Radial holders Hours 1500

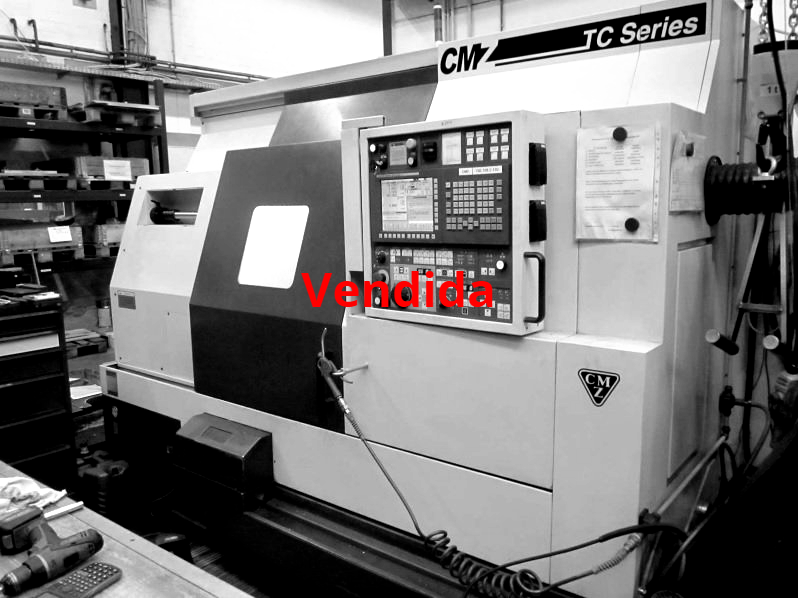

CMZ TC25 Y
Manufacturer CMZ Model TC 25 Y Year of manufacture 2010 Travels Swing over bed 650 Swing over carriage 500 Broaching length 800 Y AXIS 80 -65 Main spindle Chuck diameter 210 Bar passage 66 Max. revolutions rpm 4000 Power kW 35 Motorized turret Number of tools uni 12 Power kW 11 11,000 rpm Y-axis SI Control Fanuc 32 iTB Measuring probe presetting Equipment / accessories Chip conveyor with KSS device, 15 bar Knoll coolant system, 60 bar Direct measuring system on the X-axis Tool measuring arm, Renishaw Workpiece catcher with conveyor belt Bar magazine preparation (UNIMAG) Electronic handwheel Driven tool holder 8 1x collet chuck D 42 1x collet chuck D 60 1x 3-jaw chuck SMW BBM210 / 66

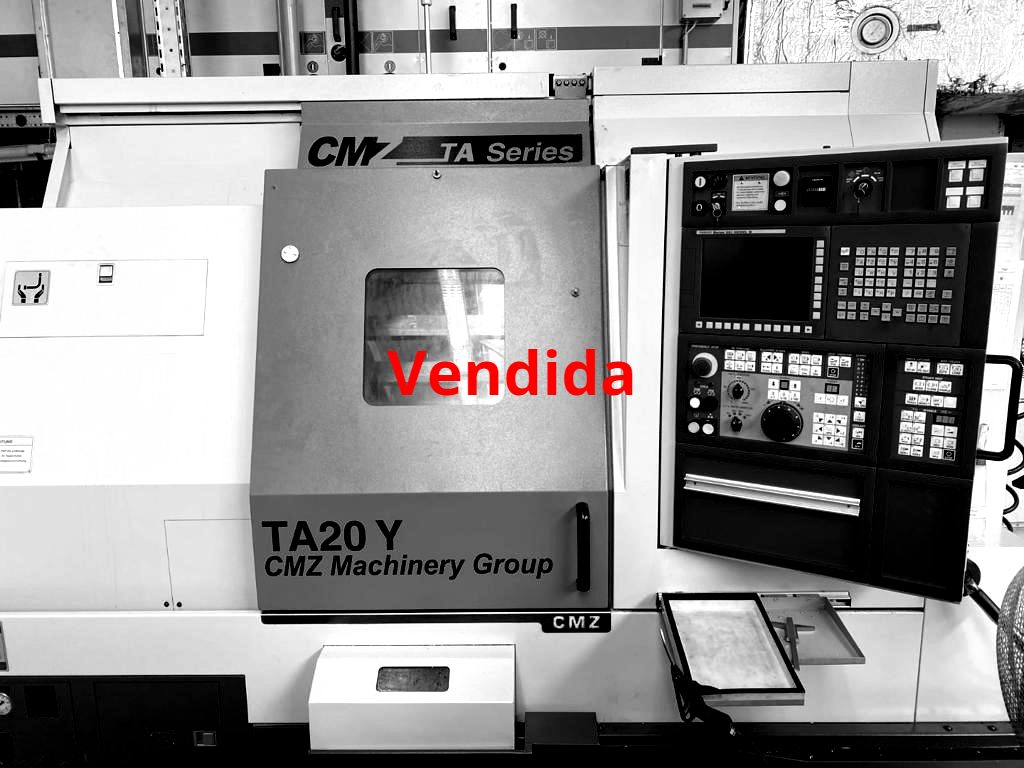

CMZ IS 20 Y
Manufacturer CMZ Model TA 120 Y Year of manufacture 2014 Travels Swing over bed 600 Swing over carriage 460 Broaching length 649 Main spindle Chuck diameter 210 Bar passage 66 Max. revolutions rpm 4500 Power kW 20 Motorized turret Number of uni tools 12 Power kW 11 11,000 rpm Y axis Control Fanuc 32 iTB Measuring probe presetting

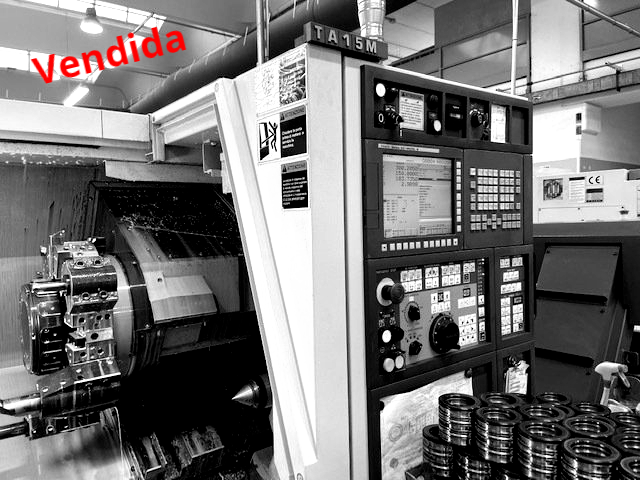

CMZ TA 15 M
Manufacturer CMZ Model TA 15 M Year of manufacture 2015 Travels swing over bed 400 Swing over carriage 350 Broaching length 643 Main spindle Chuck diameter 210 Bar passage 52 Max. revolutions rpm 4500 Power kW 15 Motorized turret Number of uni tools 12 Power kW 11 11,000 rpm Control Fanuc 32 iTB Measuring probe presetting

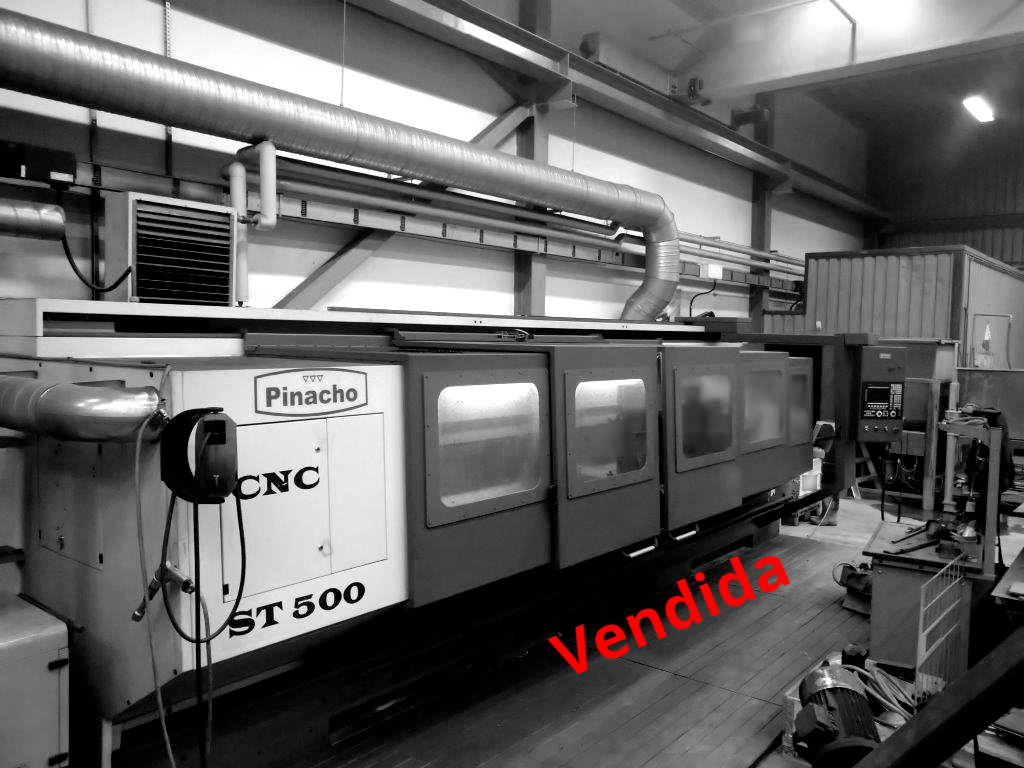

PINACHO STH 500
Manufacturer CMZ Model TA 15 M Year of manufacture 2015 Travels swing over bed 1000 Swing over carriage 750 Broaching length 5000 Main spindle Chuck diameter 510 Bar passage 136 Max. revolutions rpm 1400 Power kW 15 Motorized turret Number of uni tools 12 Power kW 11 11,000 rpm Control Fagor 8055 TC Chip conveyor
