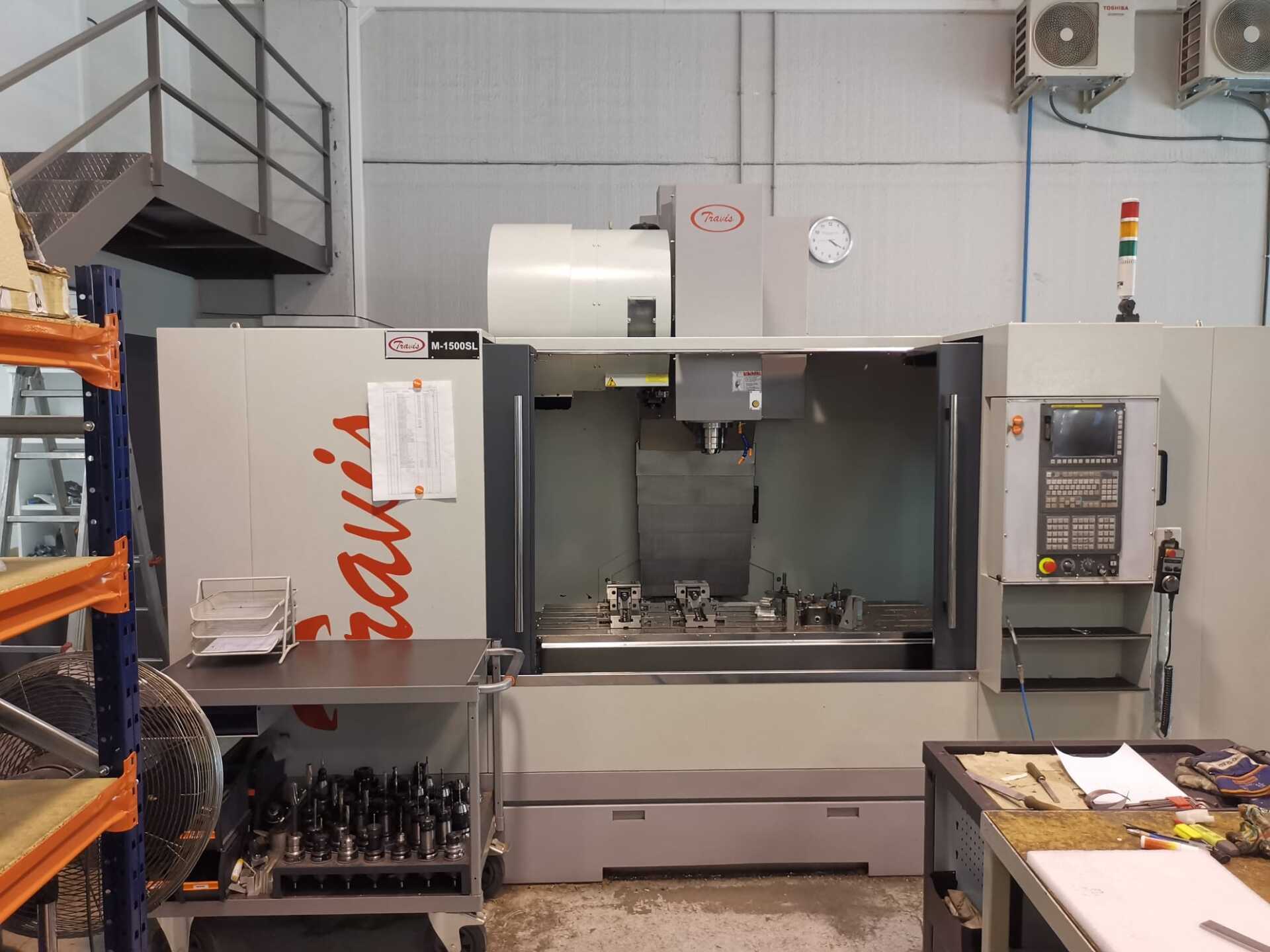

Travis M1500 Sl 3-axis Hub

Model M 1500sl

Technical data:

Table dimensions

1700 x 600

Slots mm 18 x 5

Max weight kg 1500

Courses

X-axis travel mm 1500

Y-axis travel mm 680

Z-axis travel mm 870

Max distance

from table to spindle mm 970

Min. distance

from table to spindle mm 100

Main spindle

Cone type (standard) BT 40

Revolutions rpm. 10,000

Pair Nm 48

Power at 100%

permanent kW 20/25

Fast Forward X/Y/Z

25,000/25,000/25,000

Feed rate mm/min 10,000

Tool warehouse

Random Type

Number of tools

Uni 24

Exchange time

sec. 2.5

Machine precision

Positioning JISB6300 mm ±0.006/300

Repeatability JISB6300 mm ±0.004

Power supply kVA 25

Required space Height mm 2,944

Length / width mm 3600 x 3300

Weight kg 6,000

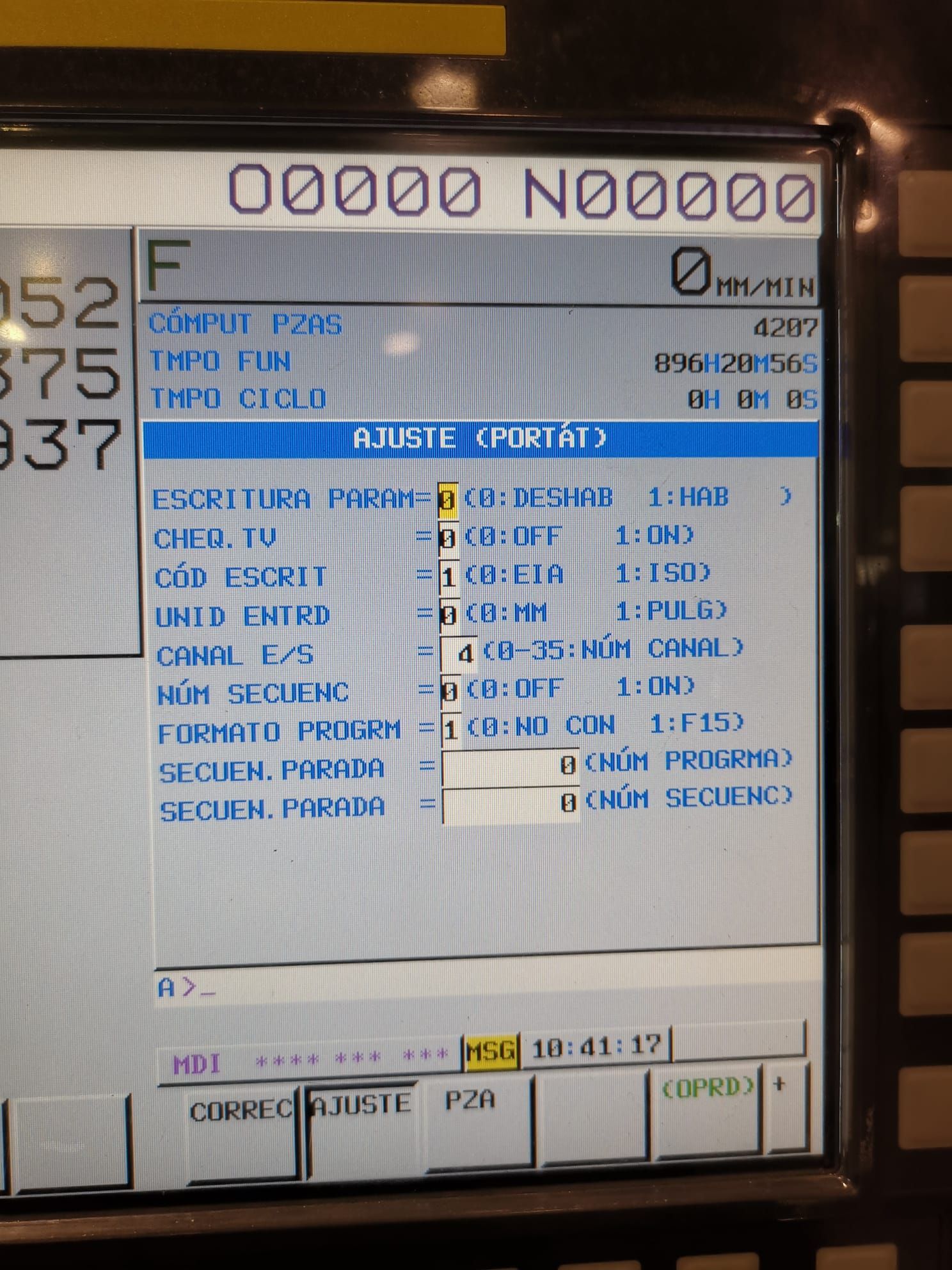

FANUC 0i MF Control
